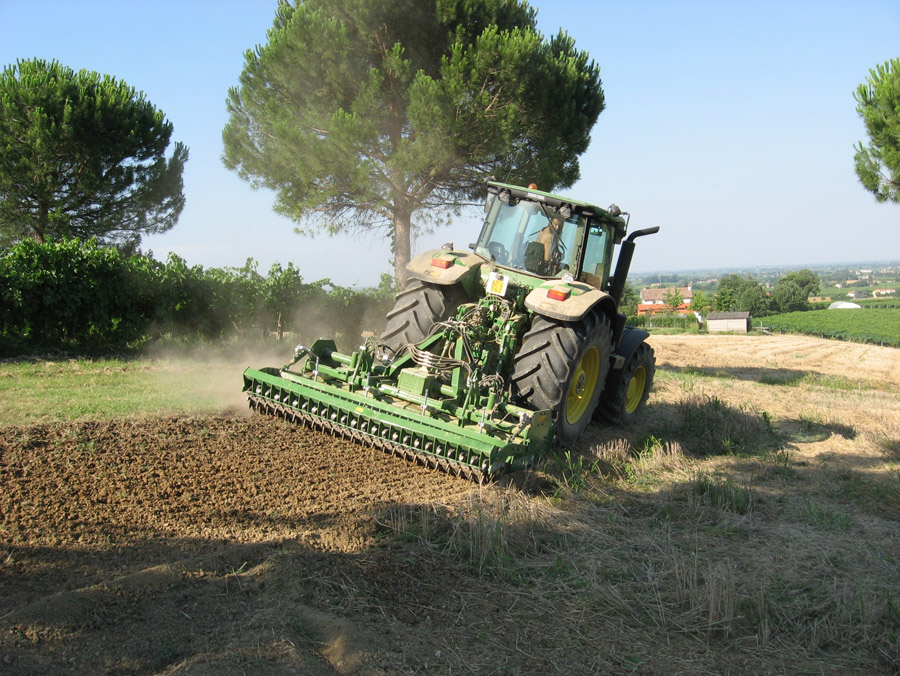

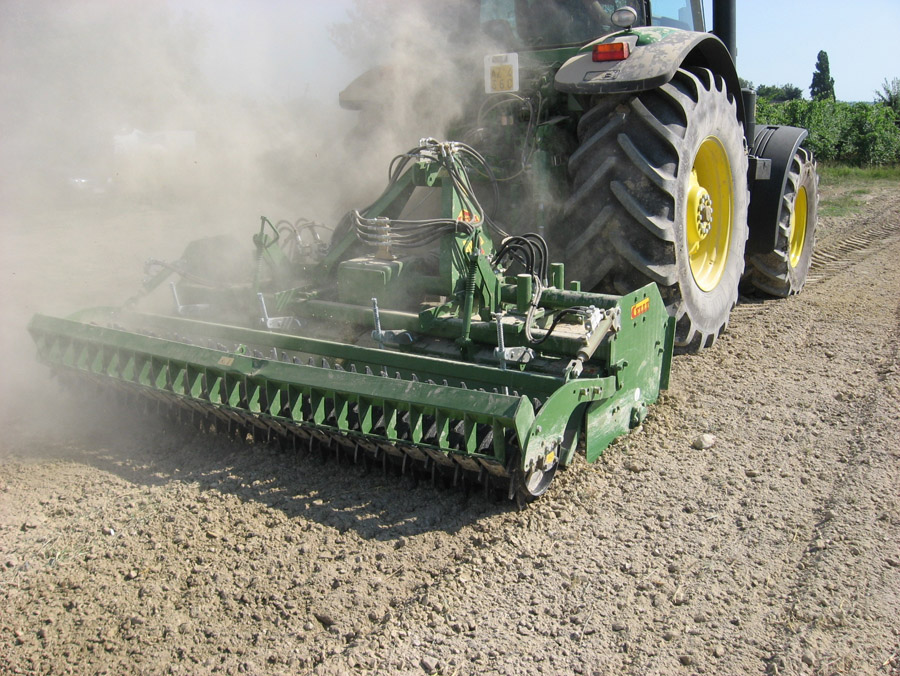

FORMULA 190 (F190) · Multi-purpose rotary tiller with upper body height adjustment

HP 100-190 KW 73-140
New

The peculiar feature of the Formula 190 model is the patented system of adjustment of the clearance between the rotating blades and the bottom of the box frame, obtained varying the position of the frame in height. In this way the volume available for the soil during work varies and so the level of refinement of clods. This adjustment is obtained thanks to 4 threaded bar connected to each other, or 4 hydraulic rams fitted with stop valves. Because of this feature this unit is particularly versatile and can be effectively used in many different working conditions. When soil is dry a better refinement can be obtained by positioning the frae in a lower position, while soild build-up can be easily avoided in wet conditions by increasing the working height of the frame and so the clearance underneath.

Technical specifications

  • maximum horse power: 190 HP (140 KW)
  • 2 speed gearbox for 1000 rpm PTO
  • gears side drive
  • 3 point hitch cat.2 and 3
  • swinging lower linkages
  • rear tailgate adjustment by threaded bar
  • upper body with screw height adjustment (race 9 cm)
  • L-shaped blades: 80×8 mm (6 blades each flange, side blades leaning inwards)
  • working depth about 25 cm
  • side-skids
  • drive shaft with clutch
  • removable safety protections

Optional accessories

  • 2 speed gearbox for 1000 rpm with rear PTO
  • 4 speed gearbox for 540 rpm with rear PTO
  • Oil cooling kit with oil reservoir derived from rear bar
  • Oil cooling kit with oil reservoir
  • C-shaped blades
  • Side blades leaning outwards
  • C-shaped blades or L-shaped blades 10 mm thick
  • Rotor with double welded flanges and 10 mm blades
  • Rotor with quick blades (10 mm) release system
  • Set of 2 front wheels
  • Rear rollers see
  • Bolted double flanges
  • Wheel track eradicator tine
  • Front sod breaking discs
  • Hydraulic rams for upper body height adjustment
  • Hydraulic adjustment for rear roller
  • Hydraulic kit for tailgate adjustment
  • Rear hydraulic hitches for seed drill

    1. (required)
    2. (required)
    4. (required)
    6. According to italian privacy laws you must give us your consent to use your personal information. Before you give us your consent to use the information you are sending, please read our privacy policy.

      Privacy Policy

      Celli S.p.A. collects and utilises the personal information entered by users of our website in accordance with the provisions of the Italian Law Decree no. 196/2003 (“Codice in materia di protezione dei dati personali”, Act on the protection of personal information).

      The company in charge of data processing is:

      Celli S.p.A.
      Via Masetti 32
      47100 Forlì – Italia

      To enforce your rights in accordance with art. 7 of the above mentioned Act (Codice in materia di protezione dei dati personali), to obtain additional information regarding your personal data collection and utilisation procedures, or for any inquiries and suggestions, please contact Celli S.p.A. directly.



    cforms contact form by delicious:days



Ideal to:

  • Prepare seedbeds
  • Cultivate heavy and sticky soil
  • Work with tractors above 190 HP
  • Bury abundant crop residues
  • Get the right soil refinement

Please see the standard specification for Rotary Tillers and Frangors.
FURTHERMORE:

Technical specifications

FORMULA version is a new system which has been patented by CELLI. Its main feature consists in the height adjustment of the main body, thus to allow to adjust its clearance with the rotor blades.
This adjustment can be with mechanical system or with 4 hydraulic rams equipped with safety bloc valves.
For this feature the FORMULA version can be considered as multipurpose units (Frangors and Rotary Tillers), making them suitable for any type of applications: when positioning the main body down, closer to blades rotor, a finer soil tillage is assured, whilst when lifting the main frame up, we can till the wettest soil without any risk of jamming.

Versatility

Large variety of applications
All FORMULA units are extremely versatile. They can work in very heavy soil, or hard and dry soil, with abundant crop residues, as primary and secondary tillage.
Their adjustments and settings are easily made to suit various and extreme working conditions
Optional accessories.
Like standard Rotary Tillers and Frangors, also FORMULA version can be offered with a large selection of accessories (oil cooling kit, rear rollers, seed-drill hitches, etc.) which allow a perfect fit to any work conditions and applications.

Commercial points

Formula version is the perfect answer for those farmers who must work in various (and variable) soil conditions. Until now the only answer was to have 2 different type of machines (standard clearance and High Clearance), now with Formula version we have one unit suitable for all applications.
CELLI motto “whatever it will be, it will be a good season” perfectly suits Formula units.
